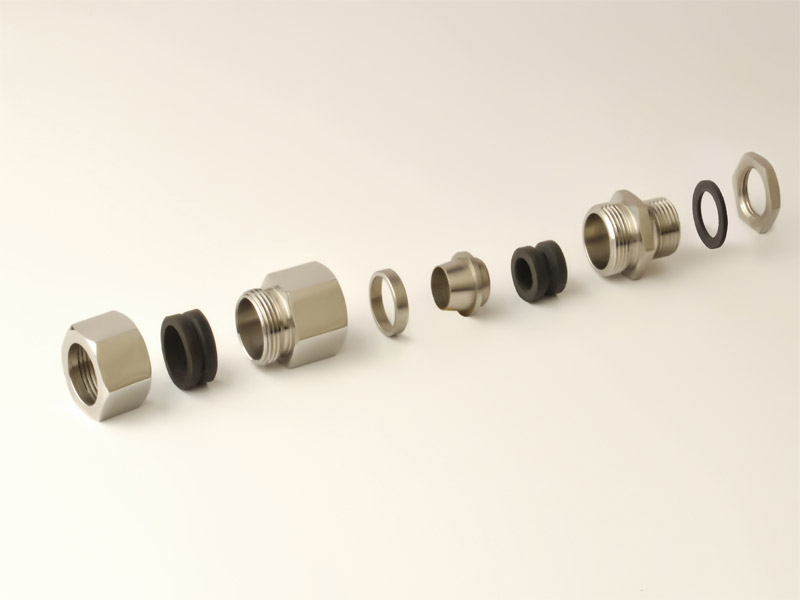

Double Compression Glands


  • Material: Brass IS : 319 - Standard (Other Graded Materials are also available)
  • Finish: Nickel Plating - Standard (other plating also available)
  • Threads: BSC Standard (MM & NPT also available)
  • Sealing: Neoprene Rubber - Standard (Nitrile & Silicon Also available)
  • Protection Class: IP 66 (IEC 60529 : 2001)
  • Ref. Std.: IS/IEC 60529:2001 & IEC 60079 - 1 (2001)
  • Application: Generally use for outdoor / indoor & for armoured & unarmoured cables
  • Gas Zone: Zone - 1 (IIA & IIB - for Flameproof Gland)
SELECTION OF CABLE GLANDS ON THE BASIS OF CABLE DIAMETER

Commercial Double Compression Gland Sizes

Industrial Double Compression Gland

Inch

MM

Weather Proof          Code / Size

Flame Proof                 Code / Size

Entry             Thread

Cable Overall Diameter

Min.

Max.







1/2"

12.00

KIW 01 SS

KIF 01 SS

3/4"

7.00

12.00

5/8"

16.00

KIW 01 S

KIF 01 S

3/4"

12.00

16.50

3/4"

19.00

KIW 01

KIF 01

3/4"

16.50

18.00

7/8"

22.00

KIW 02

KIF 02

1"

18.00

20.00

1"

25.00

KIW 03

KIF 03

1"

20.00

23.00

1.1/8"

28.00

KIW 04

KIF 04

1'

23.00

26.00

1.1/4"

32.00

KIW 05

KIF 05

1.1/4"

26.00

30.00

1.3/8"

35.00

KIW 06

KIF 06

1.1/2"

30.00

33.00

1.1/2"

38.00

KIW 07

KIF 07

1.1/2"

33.00

37.00

1.3/4"

45.00

KIW 08

KIF 08

2"

37.00

41.00

2"

50.00

KIW 09

KIF 09

2"

41.00

46.00

2.1/4"

57.00

KIW 10

KIF 10

2"

46.00

52.00

2.1/2"

63.00

KIW 11

KIF 11

2.1/2"

52.00

60.00

2.3/4"

70.00

KIW 12

KIF 12

3"

61.00

66.00

3"

75.00

KIW 13

KIF 13

3.1/4"

72.00

78.00
