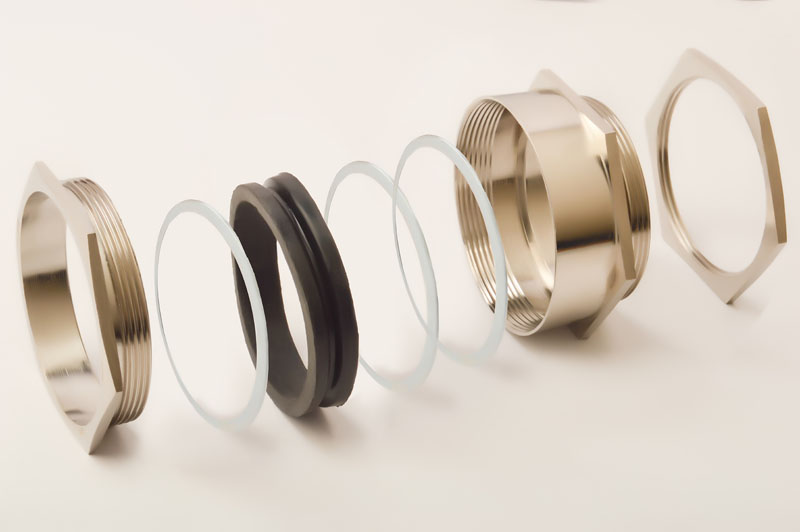

Single Compression


  • Material: Brass IS : 319 - Standard (Other Graded Materials are also available)
  • Finish: Nickel - Standard (other plating also available)
  • Threads: BSC - Standard (MM also available)
  • Sealing: Natural Rubber
  • Protection Class: IP 60
  • Ref. Std.: IS 12943 : 1990
  • Application: Generally use for indoor & for armoured / unarmoured cables
SELECTION OF CABLE GLANDS ON THE BASIS OF CABLE DIAMETER

Commercial Sing. Comp. Gland Size / Code

Heavy Sing. Comp. Gland

SIBG Type Single Compression Gland

Inch

MM

Size / Code

Size

Entry Thred

Cable Overall Diameter

Min.

Max.

1/2"

12.00

KISC - 1/2"

1616

5/8"

9.00

15.00

5/8"

16.00

KISC - 5/8"

1619

3/4"

10.00

15.00

3/4"

19.00

KISC - 3/4"

2119

3/4"

14.00

20.00

7/8"

22.00

KISC - 7/8"

2125

1"

14.00

20.00

1"

25.00

KISC - 1"

2925

1"

20.00

26.00

1.1/8"

28.00

KISC - 1.1/8"

2932

1.1/4"

24.00

29.00

1.1/4"

32.00

KISC - 1.1/4"

2938

1.1/2"

24.00

29.00

1.3/8"

35.00

KISC - 1.3/8"

3638

1.1/2"

31.00

37.00

1.1/2"

38.00

KISC - 1.1/2"

4251

2"

36.00

42.00

1.3/4"

45.00

KISC - 1.3/4"

5451

2"

44.00

50.00

2"

50.00

KISC - 2"

5463

2.1/2"

44.00

50.00

2.1/4"

57.00

KISC - 2.1/4"

6063

2.1/2"

54.00

60.00

2.1/2"

63.00

KISC - 2.1/2"

6675

3"

60.00

66.00

2.3/4"

70.00

KISC - 2.3/4"

7882

3.1/4"

70.00

77.00

3"

75.00

KISC - 3"






KISC - 3.1/4"
