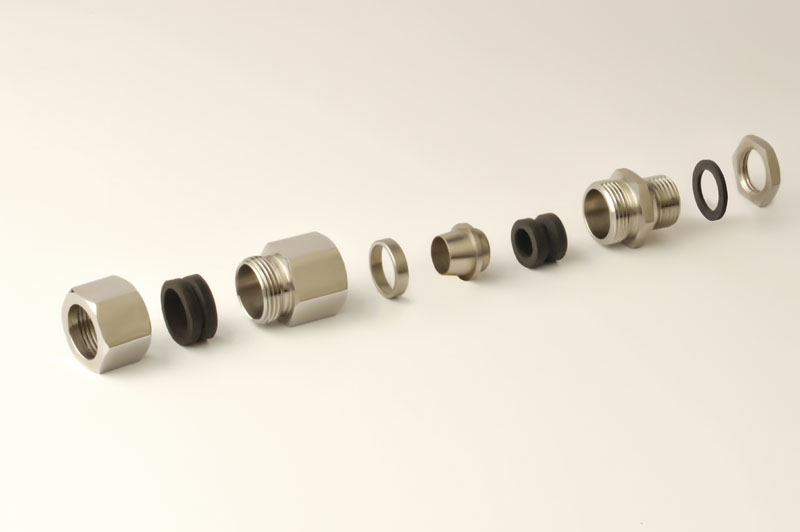

SS Cable Glands
- Material: SS 304 & 316 (Other Graded Materials are also available)
- Finish: Nickel Plating - Standard (other plating also available)
- Threads: BSC Standard (MM & NPT also available)
- Sealing: Neoprene Rubber - Standard (Nitrile & Silicon Also available)
- Application: Generally use for outdoor & for armoured cable, Also appropriate for unsuitable marine environments.
|
Industrial
Double Compression Gland |
||||||
|
Weather
Proof Code / Size |
Flame
Proof Code / Size |
Entry Thread |
Cable
Overall Diameter |
|||
|
Min. |
Max. |
|||||
|
|
|
|
|
|
|
|
|
KIW
SS 01 SS |
KIF
SS 01 SS |
3/4" |
7.00 |
12.00 |
||
|
KIW
SS 01 S |
KIF
SS 01 S |
3/4" |
12.00 |
16.50 |
||
|
KIW
SS 01 |
KIF
SS 01 |
3/4" |
16.50 |
18.00 |
||
|
KIW
SS 02 |
KIF
SS 02 |
1" |
18.00 |
20.00 |
||
|
KIW
SS 03 |
KIF
SS 03 |
1" |
20.00 |
23.00 |
||
|
KIW
SS 04 |
KIF
SS 04 |
1' |
23.00 |
26.00 |
||
|
KIW
SS 05 |
KIF
SS 05 |
1.1/4" |
26.00 |
30.00 |
||
|
KIW
SS 06 |
KIF
SS 06 |
1.1/2" |
30.00 |
33.00 |
||
|
KIW
SS 07 |
KIF
SS 07 |
1.1/2" |
33.00 |
37.00 |
||
|
KIW
SS 08 |
KIF
SS 08 |
2" |
37.00 |
41.00 |
||
|
KIW
SS 09 |
KIF
SS 09 |
2" |
41.00 |
46.00 |
||
|
KIW
SS 010 |
KIF
SS 010 |
2" |
46.00 |
52.00 |
||
|
KIW
SS 011 |
KIF
SS 011 |
2.1/2" |
52.00 |
60.00 |
||
|
KIW
SS 012 |
KIF
SS 012 |
3" |
61.00 |
66.00 |
||
|
KIW
SS 013 |
KIF
SS 013 |
3.1/4" |
72.00 |
78.00 |
||
